Product Description

Dressage Arena Upgrades

Moving up the levels and need a dressage arena upgrade? If you purchased a short court or a training type arena (less rails) and now you want to fill in the gaps or make the arena a full court, we have an economical solution for you.

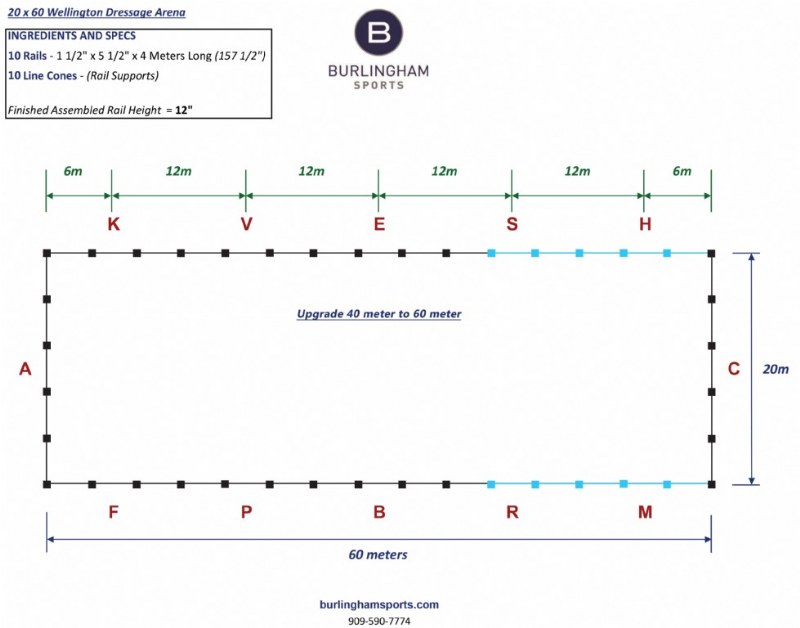

• Upgrade 40 meter to 60 meter

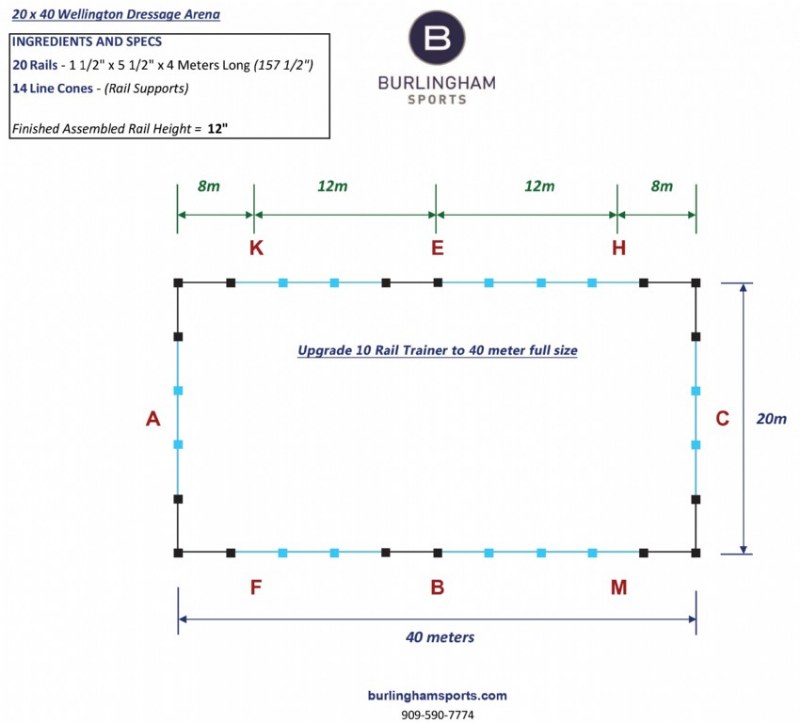

• Upgrade 10 Rail Trainer to 40 meter full size

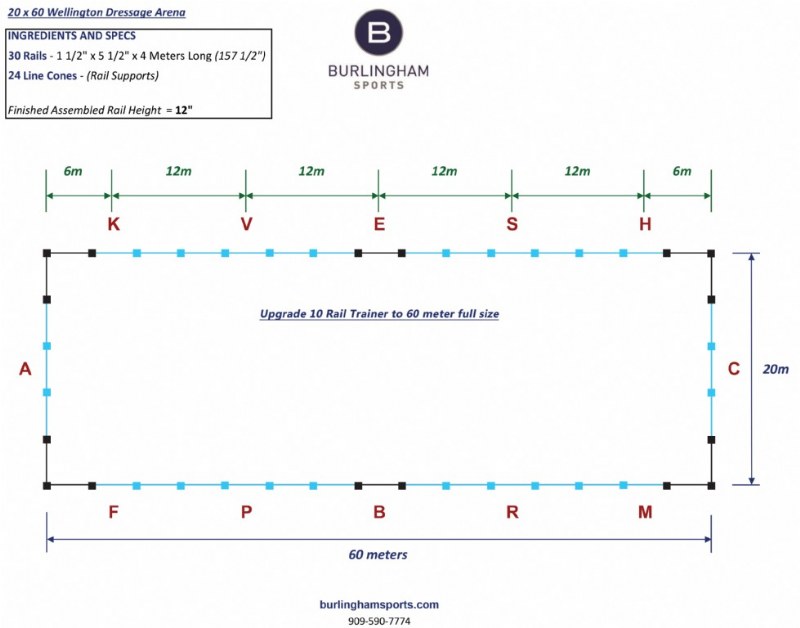

• Upgrade 10 Rail Trainer to 60 meter full size

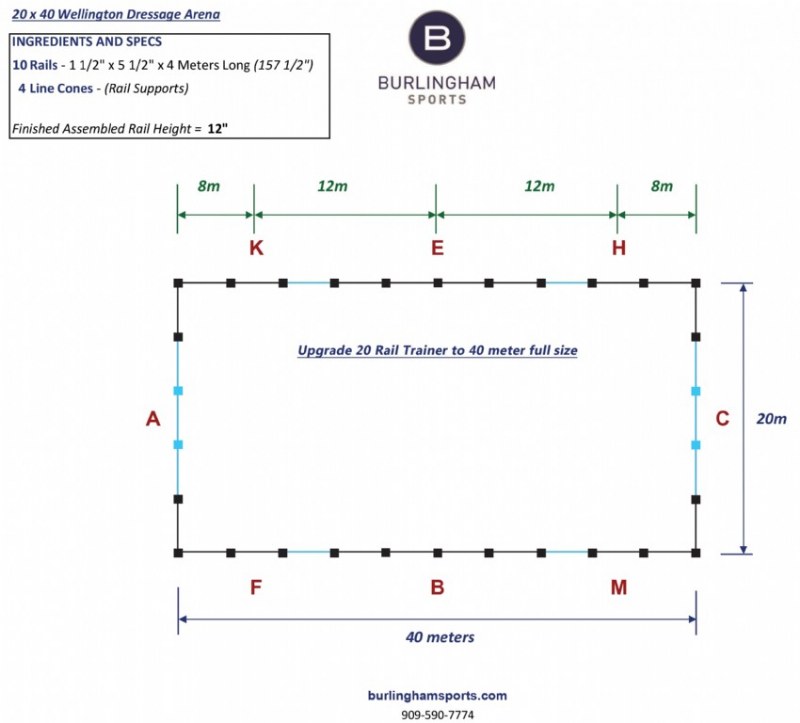

• Upgrade 20 Rail Trainer to 40 meter full size

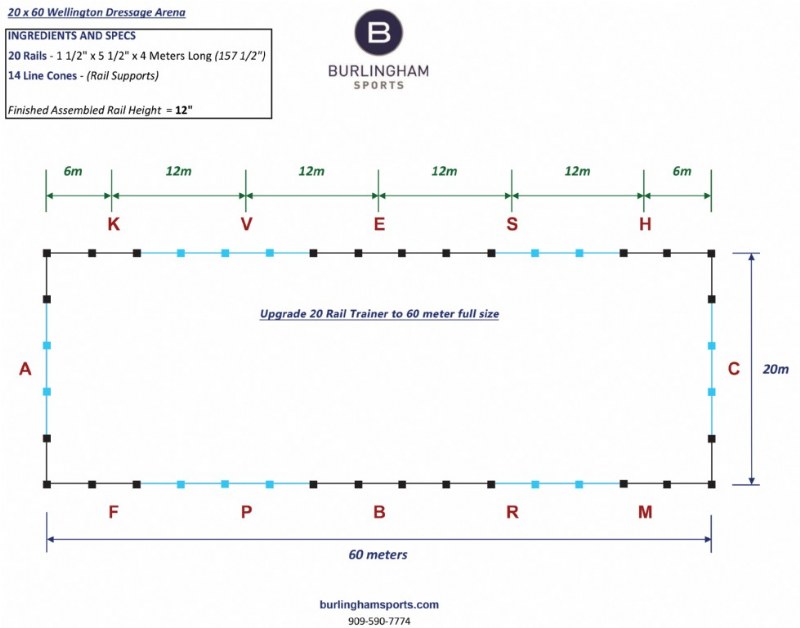

• Upgrade 20 Rail Trainer to 60 meter full size

All of our upgrade package include:

• Complementary US Ground Shipping via Freight truck
  • International delivery available
• Pre-measured rails assure easy set-up
• Enhanced block and rail system
• UV stabilized PVC ensures a long life
• Highly stable in windy conditions
• Ribbed (not hollow) rails add strength
• Replaceable dressage arena parts available

Rail Specifications

All pieces of the upgrade arena package are UV treated, therefore making them very durable with a longer life in all weather conditions. The rails are not hollow inside, but actually ribbed. This feature makes the rails light but strong, durable, and rigid enough not to warp like many PVC pipe dressage arena designs do.

Each standard length rail is 1 .5″ thick and 5.5″ high and measure 4 meters long (approx. 13 feet). When propped up by the line cones (rail supporters), the top of the rail is at the required 12″ mark.

Looking for shorter rails that will easily fit in the bed of a truck?

Our “short” length rail is 1.5″ thick and 5.5″ high (same as standard). Their length is 112.5 inches (2.858 meters) or 9.45 feet. The short rail option makes this setup truly a mobile dressage arena. You can find those options for portable dressage arenas.

Dimensions & Included Parts

Regulation height arena! These upgrade packages come in different sizes & include everything you need to complete your arena. When fully assembled, all rails will be at the required 12″ above the ground.
